Description

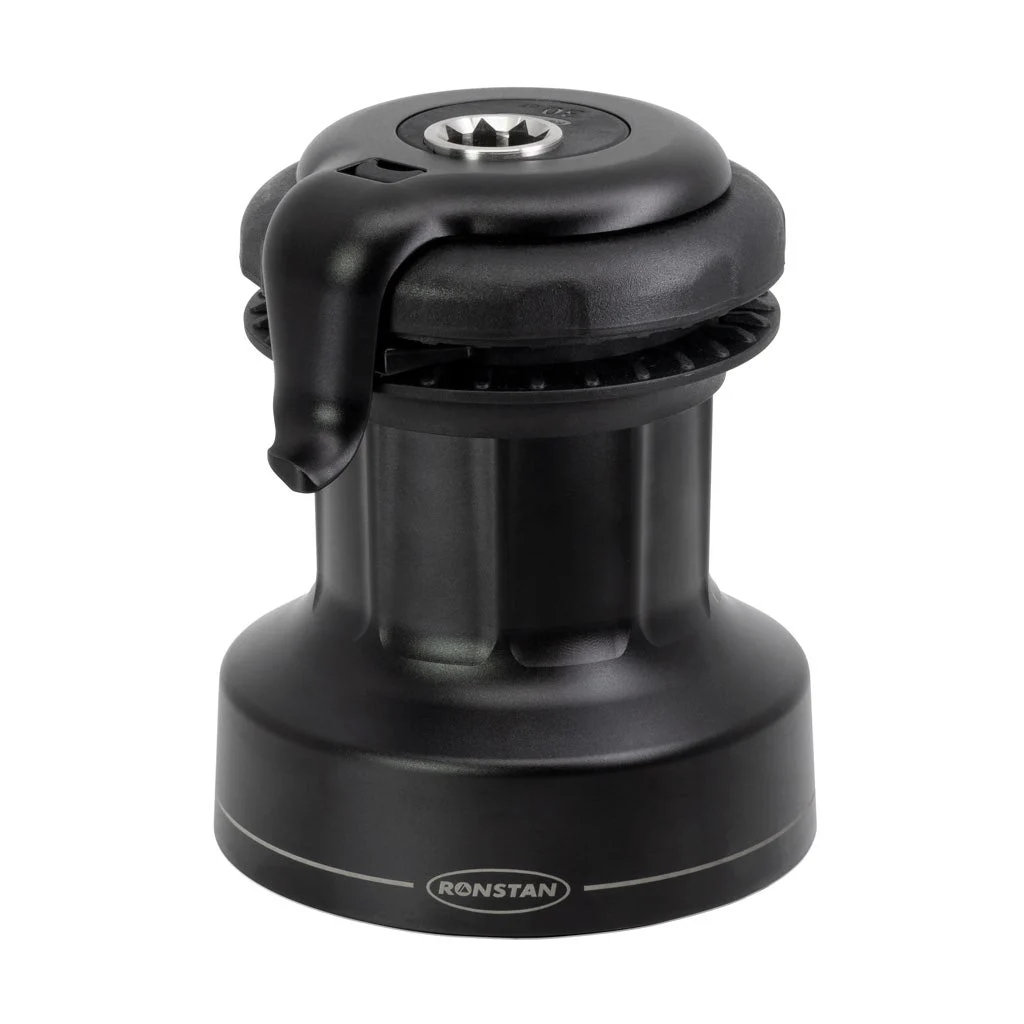

Ronstan 30QT Orbit Winch with QuickTrim

Features:

• Sprung self-tailing jaws to accept 7 – 12mm line.
• QuickTrim patented self-tailing feature for rapid sail trim and smooth adjustment.
• Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
• Smallest winch in its class with a powered option.
• Proven Andersen winch gearing configuration.
• Power Rib ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
• No tools required for configuration and servicing.
• Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
• Aluminium centre stem, lighter weight compared to bronze stems.
• Low line entry due to gearing configuration geometry.

Specifications

• Gear ratio 1st speed: 1.4:1
• Gear ratio 2nd speed: 5.2:1
• Power ratio 1st speed: 8.3:1
• Power ratio 2nd speed: 30.2:1

Materials:

• Hard anodised aluminium drum and centre stem, aluminium self-tailing arm.
• Grade 316 stainless steel shaft, axle pins, and pawls.
• Aluminium bronze gears.
• Glass-filled nylon self tailer.
• Self-lubricating acetal ball and roller bearings.
