Description

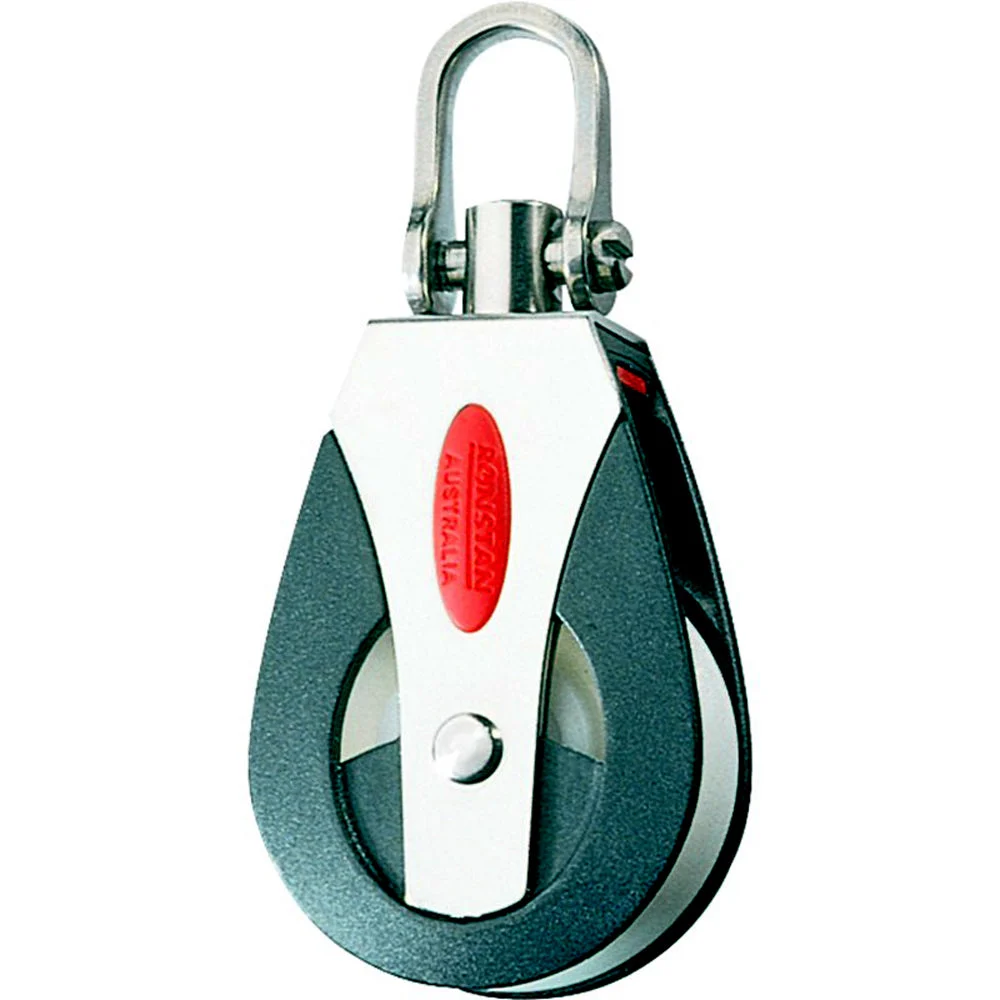

Series 40 Ball Bearing Block – Single – Universal Head
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features:

• Low friction Acetal or Torlon® bearing system
• Lightweight
• Cheek cut-outs for easy bearing maintenance
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines

Applications:

• Mainsheet
• Halyard
• Vang
• Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26′)

Materials:

• U.V. Stabilized Acetal sheaves
• Acetal ball bearings
• Impact and U.V. resistant, fiber reinforced Nylon cheeks
• Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø:40mm(1-9/16″)
Max. Rope Ø:10mm(7/16″)
Pin Ø: 5mm(3/16″)
M.W.L.:350kg(770lbs)
B. L.:1,000kg(2,200lbs)
Weight:70g(2.5oz)
“RonstanRonstan Ball Bearing blocks have been conceived and engineered for the demands of competitive sailing. Used on boats of all sizes for sheet, fine tune and control line applications they utilise a highly efficient, low friction bearing systems for optimum sheeting and trimming performance.”
SKU: NVN-55210
MPN: RF40100
UPC: 9316800243891
