Description

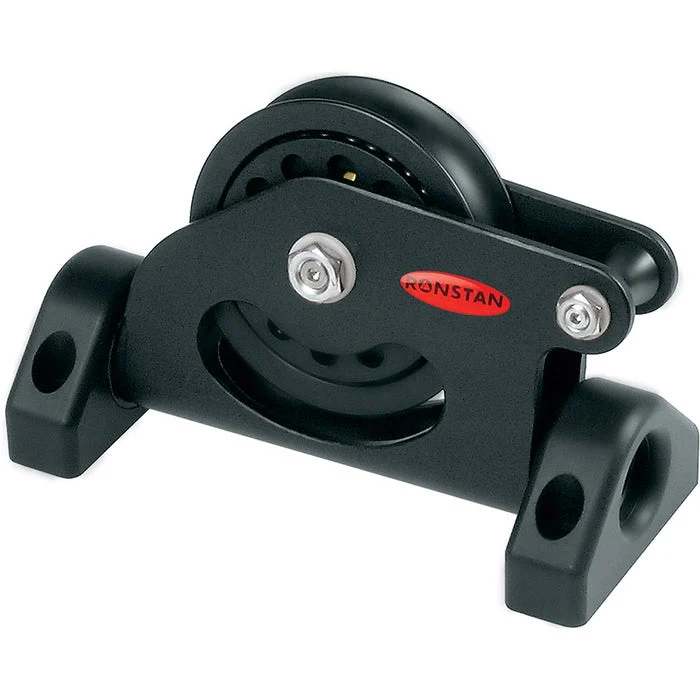

Ronstan Series 75 Roller Bearing Block, Pivoting Low lead, Single

Maintains alignment with a variable line entry-angle. The self-contained alloy sheave packages provide reliable, low-friction performance at high loads. The high axial loads are carried by Torlon roller needle bearings, while side thrust loads are taken

Features:

• High static and dynamic load capacity.
• Keeps lines close to the deck.
• Cheek cut-outs for easy bearing cleaning and maintenance.
• Blocks can be dis
• Assembled for servicing

Specifications:

• Max. Rope diameter (in): 9/16
• Sheave diameter (in): 3

Materials:

Alloy sheave and housing. Torlon needle rollers. Black carbon Acetal ball bearings
