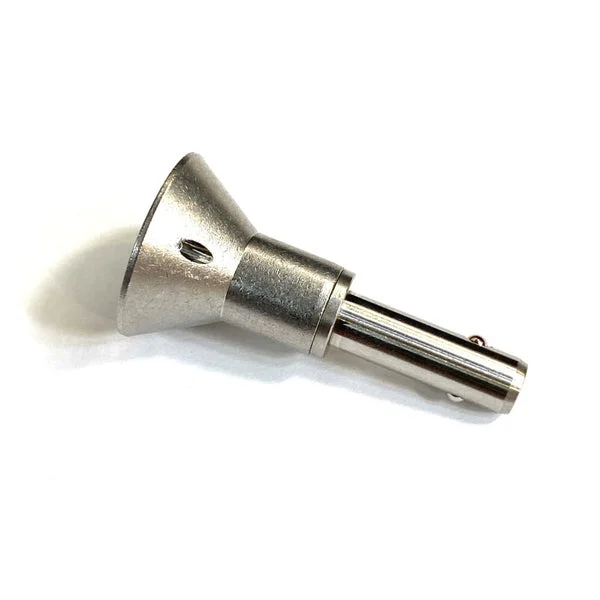

Rooster Quick Release Bottom Pin for Harken Swivel Cleat
This Rooster quick release pin is for your ILCA/Laser Harken vang/kicker XD system. Easy and quick, releasing – Simply push the button, the pin releases and pull it out. Attach to your Harken vang/kicker XD system to the bottom mast section. A small hole is provided on the side of the tapered handle to allow, as an option – a split ring or small twine cord to be attached – to assist removal.
Note: Pin diameter is 6.3mm (1/4″)
Tested with the official Laser Harken XD kit fitting – a perfect fit. Class legal.
Materials:
- Body – 17-4 PH Grade Stainless Steel
- Spindle, Button and Handle (Dia. 20.7 mm) – 303 Grade Stainless Steel
- Spring – 304 Grade Stainless Steel
Rooster Quick Release (Kicker Bottom Pin) Properties
| Weight | 19 grams |
| Dim A | 6.3 mm |
| Dim B | 7.3 mm |
| Dim C | 6.5 mm |
| Dim E | 10.1 mm |
| Dim H | 21.1 mm |
| Dim H1 | 11.3 mm |
| Dim L Grip length | 13 mm |
