Description

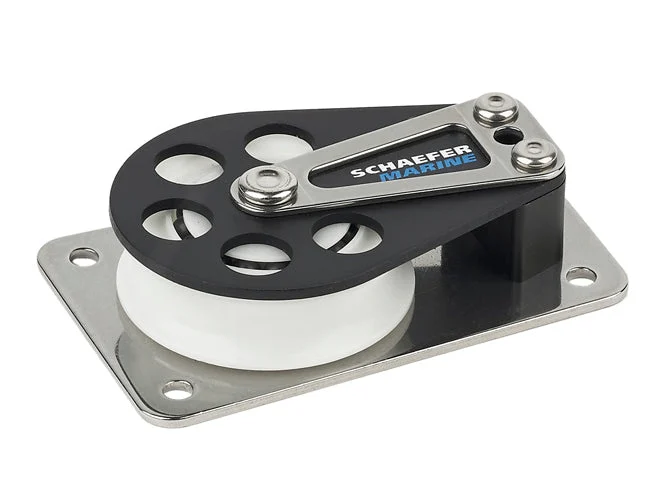

5 Series Cheek Block with Anodized Aluminum cheek and Delrin(tm) ball bearing sheave. Delrin(tm) ball bearing sheave provides low-friction and high safe working load. Stainless steel base distributes loads to a large surface area. Sheave Dia. 2″ (51 mm), Max Line 7/16″ (11 mm), L 3-5/8″ (92 mm), W 2-7/32″ (57 mm), H 7/8″ (22 mm), Fasteners (4) #10 RH (5 mm), C/C 3″ (76 mm), SWL 1500 lbs. (680 kg), Weight Aluminum 5.9 oz. (167g), Max Line 7/16″ (11mm)
