Description

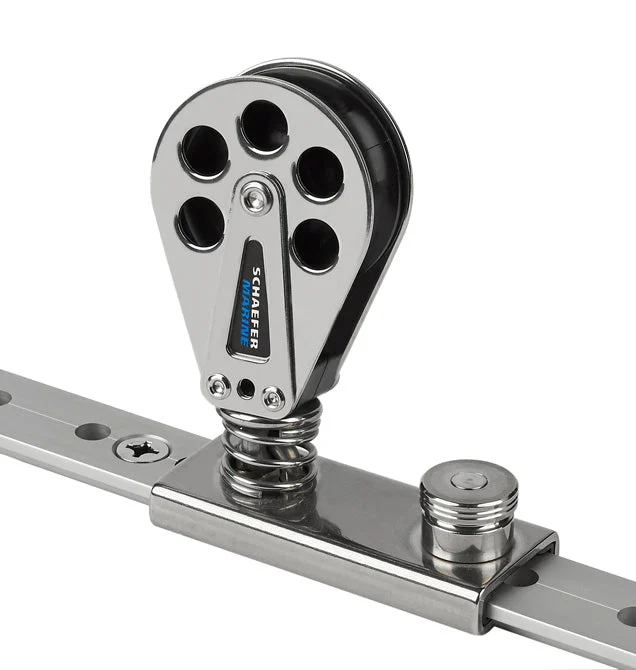

Stand up spring block for 1-1/4″ T-Track. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. Track Size 1-1/4″ x 3/16″ (32 mm x 5 mm), Boat Size Up To LOA, 33′, 12000 lbs., 520 sq. ft. (10 m, 5455 kg, 48 m2), Sheave Dia. 2-3/8″ (60 mm), Max Line 1/2″ (12 mm), Length 4″ (102 mm), W 1-9/16″ (39 mm), H 4-15/16″ (126 mm), Bearing Height 2-3/8″ (67 mm), SWL 2250 lbs. (1020 kg), Weight 14 oz. (397 g)
