Description

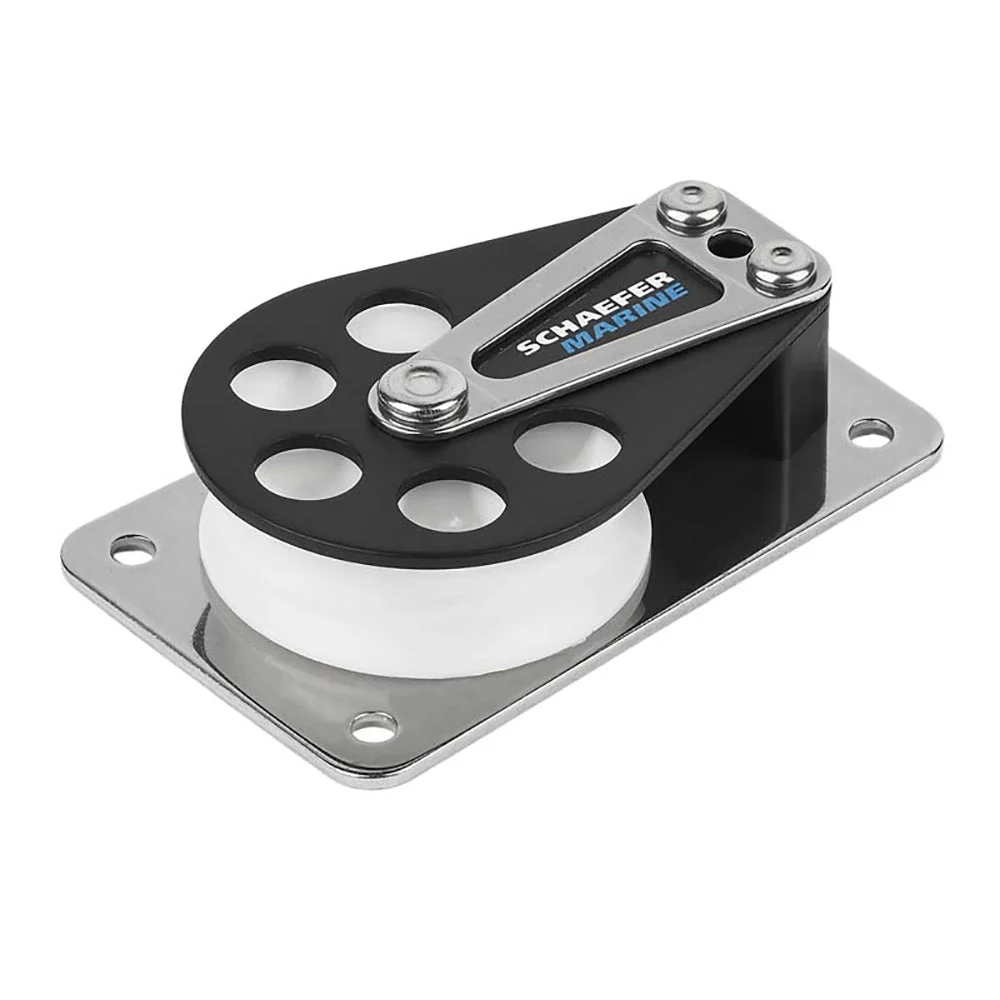

Series 5 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

• Sheave Diameter 2″ (51 mm)
• Max. Line 7/16″ (11 mm)
• Length 3-5/8″ (92 mm)
• Width 2-7/32″ (57 mm)
• Height 7/8″ (22 mm)
• Fasteners (4) #10 RH (5 mm)
• C/C 3″ (76 mm)
• SWL 1750 lbs. (795 kg)
• Weight 5.9 oz. (167g)
• Max. Line 7/16″ (11mm)

Aluminum cheek stainless steel base Delrin pulley 1750lb (795kg) safe working load Schaefer block has been manufactured in the United States since 1966, and is…
SKU: NVN-74716
MPN: 504-11
UPC: 740507011634
