Description

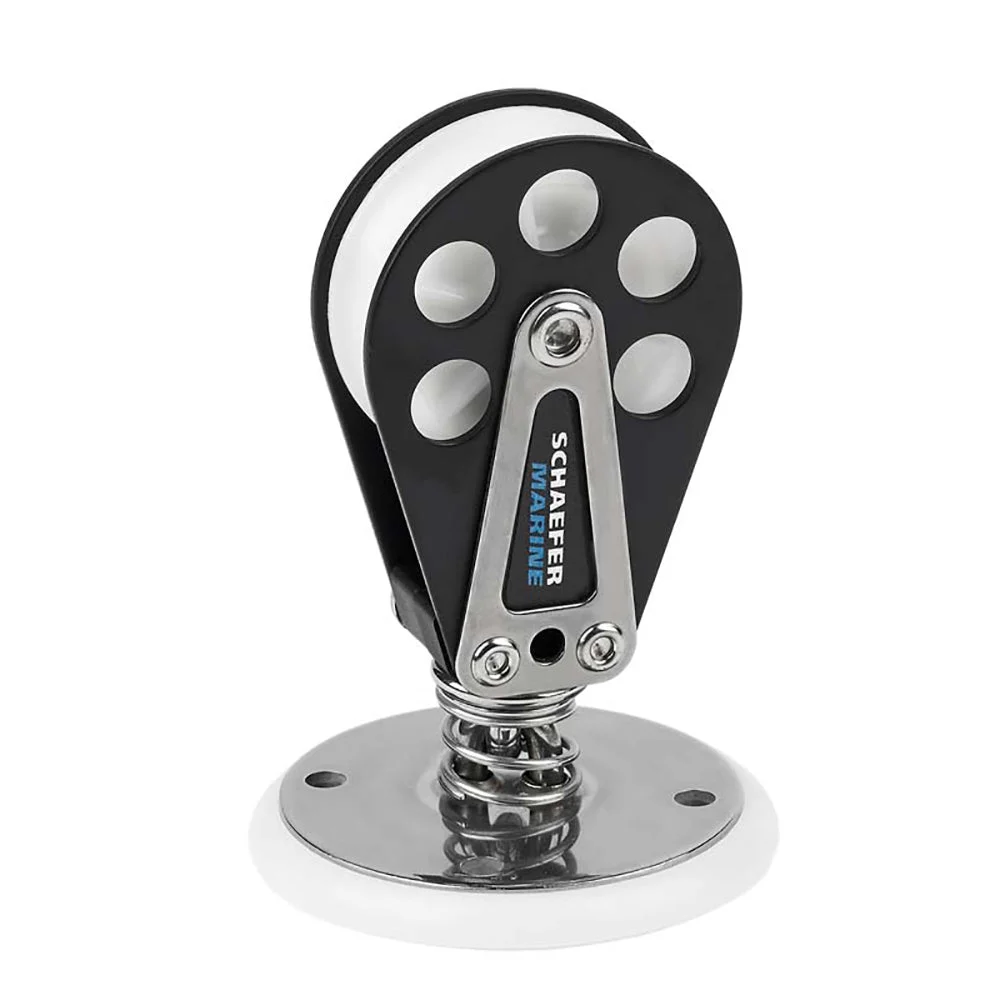

Stand-Up Swivel with Aluminum Cheeks

Delrin™ sheave ensures smooth operation and high safe working load.

Specifications:

• Sheave Dia. 2″ (51 mm)
• Max Line 7/16″ (11 mm)
• Diameter includes urethane base 2-7/8″ (73 mm)
• Height 4-1/32″ (103 mm)
• H2 2-3/32″ (54 mm)
• Fastener Size (4), #10 RH (5 mm)
• C/C 1-12/31″ (36 mm)
• SWL 1750 lbs. (790 kg)
• Weight Alum. 7.0 oz. (198 g)
• #97-48 BACKING PLATE SOLD SEPARATELY

Schaefer’s standing 2-inch aluminum cheek swivel type (504-62). If you are an avid sailing enthusiast and want to improve your experience on the water, then the best sailing…
SKU: NVN-74717
MPN: 504-62
UPC: 740507011818
