Description

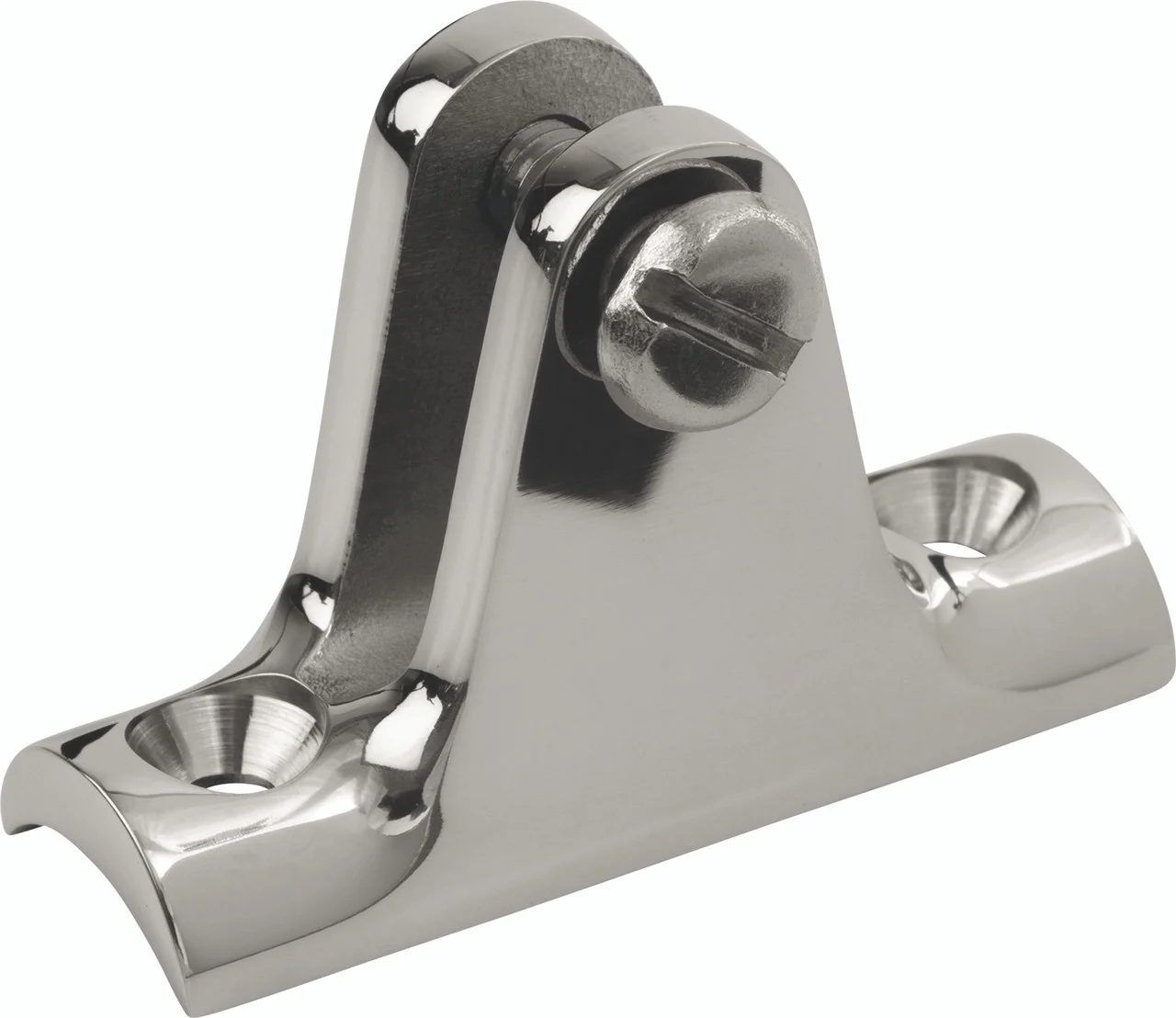

Sea Dog® Stainless Steel Deck Hinge with 1/4″ Bolt, 3/4″ x 2-1/4″ 1″ Concave Base (270240-1) In Bimini top installations, deck hinges mount horizontally and attach an eye end. With a 180° adjustable hinge, you may mount things at almost any angle, including vertically. Removable pin variants have a spring-loaded quick-release pin for easy top removal and angled hinges for goods that need to be mounted on sloping surfaces like steep gunwales. Sea Dog provides best-in-class solutions that are both reliable and efficient for boat makers and owners.

Key features:

• 1″ Concave Base Deck Hinge

• Expertly crafted from premium materials

• Designed to match rigorous quality standards

• High quality at a budget-friendly price

Product specifications:

• SKU: 3-270240-1

• UPC: 035514270144

• Weight: 0.22 LBS

• Fastener: #10 FH

• Base: 3/4″ x 2 1/4″

• Pin _ Screw Part #: 0P27001

• Pin Size: 1/4″

• Alternate Products SKU: “5-55116”, “3-270240-1”

• Quantity: 1

• This product replaces: 270240, 270240-1, 3-270240, 35514270144

1″ Concave Base Deck Hinge. Concave hinges are designed to rail mount on 1″ tubing. 180° adjustable hinge allows universal mounting at almost any angle including vertical mounting.

This product replaces:

270240, 270240-1, 3-270240, 35514270144
