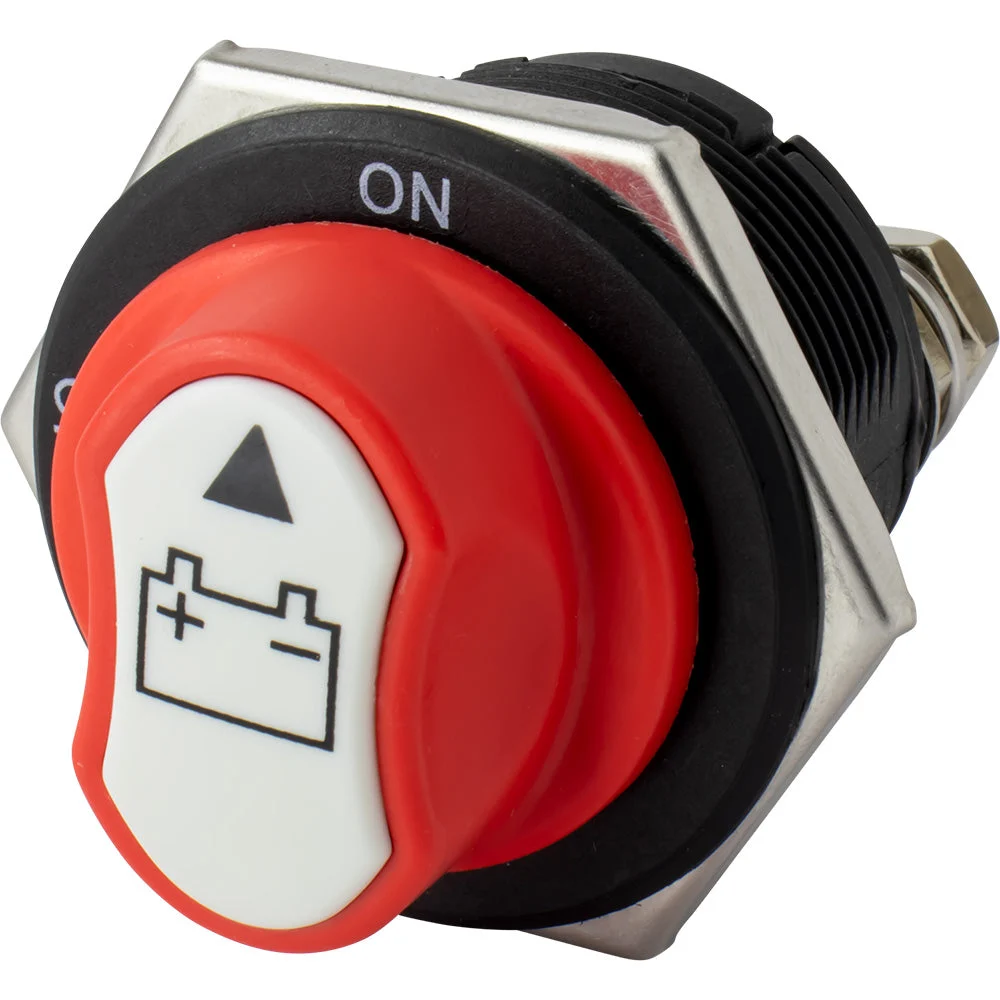

Mini Battery Switch Key with Removable Knob – 32V & 300A

These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422730-1 is rated at 300A continuous and 1000A cranking amps. Installation is as easy as drilling a 2-1/16″ hole for the 422730-1, inserting the socket body, tightening the locking nut, and connecting the wires.

Features:

• 3 Switch positions: On, off, and out
• Constructed of machined brass and injection molded nylon

Specifications:

• Switch Face Width: (inch) 2-1/16″
• Volts: 32
• Amps: 300
• Stud Diameter: (inch) 5/16″

SKU: NVN-98441
MPN: 422730-1
