Description

The Fuel Hose 1/4″ X 25′ is design to Outboard and fuel feed inboard/Outdrive. It is a reinforced rubber hose in a vehicle that carries the fuel from a fuel tank to a different part of the vehicle, usually the fuel pump. It comes in many different sizes in a variety of vehicles. It is a shield and low permeation fuel hose with a plastic barrier veneer and NBR outer layer tube to limit permeation.

Key Features:

• Meets USCG Type A1 – 15 requirements for pleasure boats, SAE J1527 Type A1-15, SO 7840 Type A1, and accepted NMMA/CE type standards
• Polyester is reinforced and complies with EPA and CARB low permeation requirements.
• Weather and ultraviolet resistant
• Product replaces: 88-3680145, 808282266264, 116-368-0145

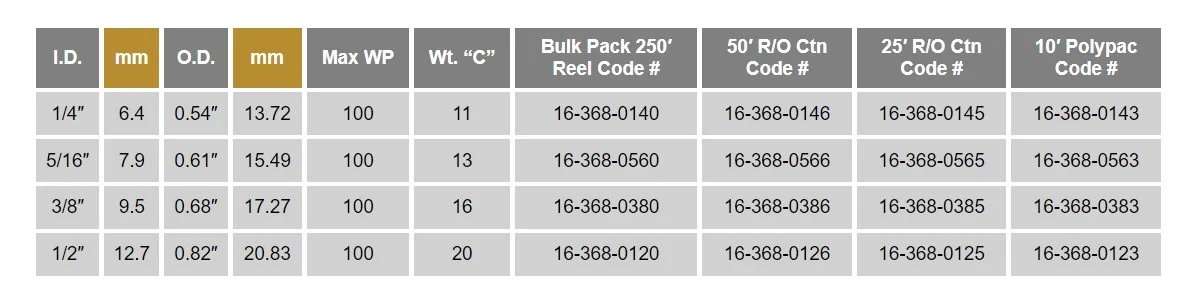

Specifications:

• SKU: 16-368-0145
• UPC: 808282266264
• Weight: 3.86 LBS
• Inner Diameter: 1/4″ or 6.4mm
• Max WP: 100
• Outer Diameter: 35/64″ or 13.72mm
• Temperature Range: – 20°F to 212°F
• Wt. “C”: 11

Plastic barrier veneer with an NBR outer layer tube, polyester reinforced. Primarily used for fuel feed (gasoline up to 85% ethanol blended fuel/diesel/all bio-diesel blends) Meets USCG Type A1 – 15 requirements for pleasure boats and meets SAE J1527 Type A1-15, SO 7840 Type A1, and NMMA/CE type accepted standards

This product replaces:

88-3680145, 808282266264, 116-368-0145

This product replaces:

88-3680145, 808282266264, 116-368-0145
