Description

Dimension A Internal Width

Dimension B Internal Height

Our range of Forged shackles are manufactured in Europe AINI 316 Stainless Steel for superior strength and corrosion resistance. Our complete range of forged shackles can be supplied with a certificate of conformance and a pull test certificate. We can also manufacture custom components that utilise the forged shackles.

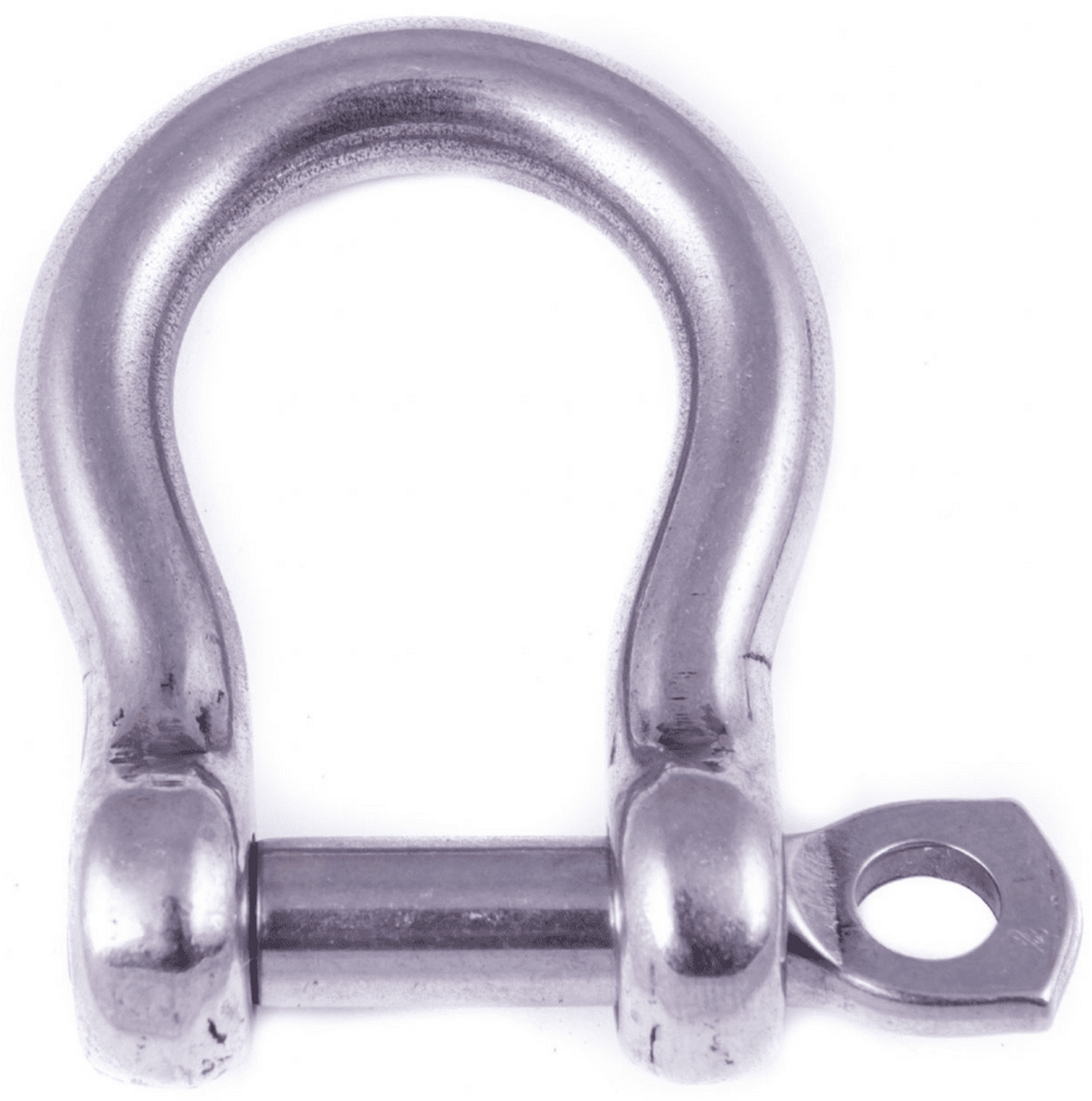

• Size: 10mm Bow Shackle
• Material DIA.: 10mm
• DIM ‘A’: 20mm
• DIM ‘B’: 46mm
• DIM ‘C’: 31mm
• Breaking Load: 6200kg
• Weight: 139g
