Description

Toggle switches turn something on and off in alternating sequences. Toggle switches keep the electrical circuit intact and let the current pass through if the switch is in the “on” position. In the switch is in the “off” position, it breaks the electrical circuit which stops the current from flowing. Sierra toggle switches offer a variety of switching functions features, SPDT, SPST, DPDT, DPST. Some have an illuminated handle and some are lit just through the tip of the handle. Toggle switches are also available with screw or blade terminals, or with attached wire leads.

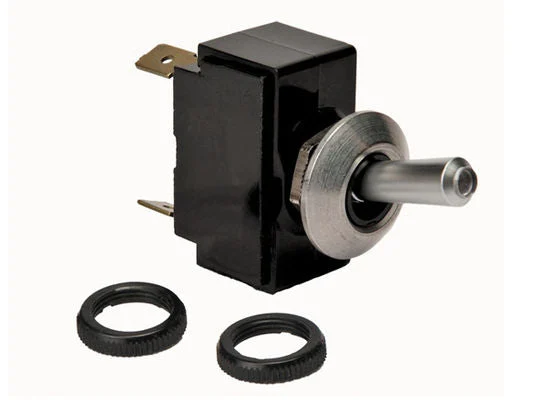

Sierra Marine TG23000 Attributes

• Type: Toggle
• Voltage: 12 Volt
• Current Rating: 20 Amp
• Number Of Switch Positions: 2
• Connector Gender: Male
• Number Of Electrical Connectors: 5
• Terminal Type: Blade
• Number Of Terminals: 5
• Color: Black
• Material: Plastic

Sierra Marine TG23000 Features & Benefits

• Non-Corrosive Plastic Construction
• Brass Blade Terminals, Silver Contacts
• Illuminates White When Panel Light Are ON, Changed To Red When Switch Is ON
• Satin Chrome Handle With Matching Retaining Ring
• Lights Through Tip Of Handle
• Limited 2 Year Warranty

SKU: NVN-2005503
MPN: TG23000
UPC: 808282304614
