Description

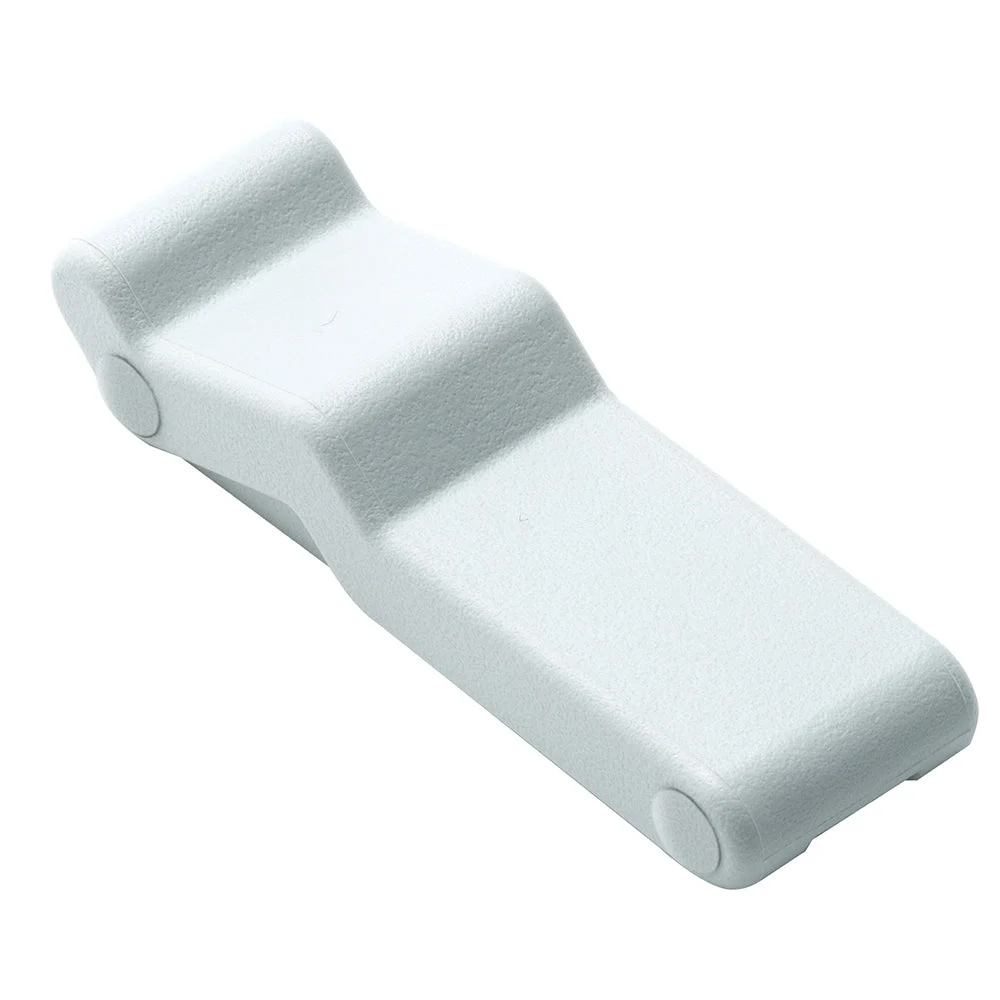

Concealed Soft Draw Latch with Keeper – White Rubber

The soft body construction of these latches quiets vibration and provides satisfactory performance despite misalignment.

• Internally-mounted lever provides over-center action for mechanical advantage in closing, plus protection against accidental opening
• Molded latch body conceals mechanism and mounting hardware
• Right-angle keeper design permits use in applications where panel is perpendicular to the frame
• Non-corrosive materials permit use in outdoor environments
• Provides steady state clamp force of 49 N (11 lbs.) at recommended mounting dimensions

Industry Applications

• Appliance
• Electronic Enclosures
• Food Equipment
• HVAC
• Lawn/Garden Equipment
• Marine
• Medical

The C7 Flexible Draw Latch series has a smooth, low-key design and a soft thermoplastic elastomer structure, which can adapt to a large number of misalignments in the application.
SKU: NVN-67301
MPN: C7-10-02
UPC: 817382010936
