Description

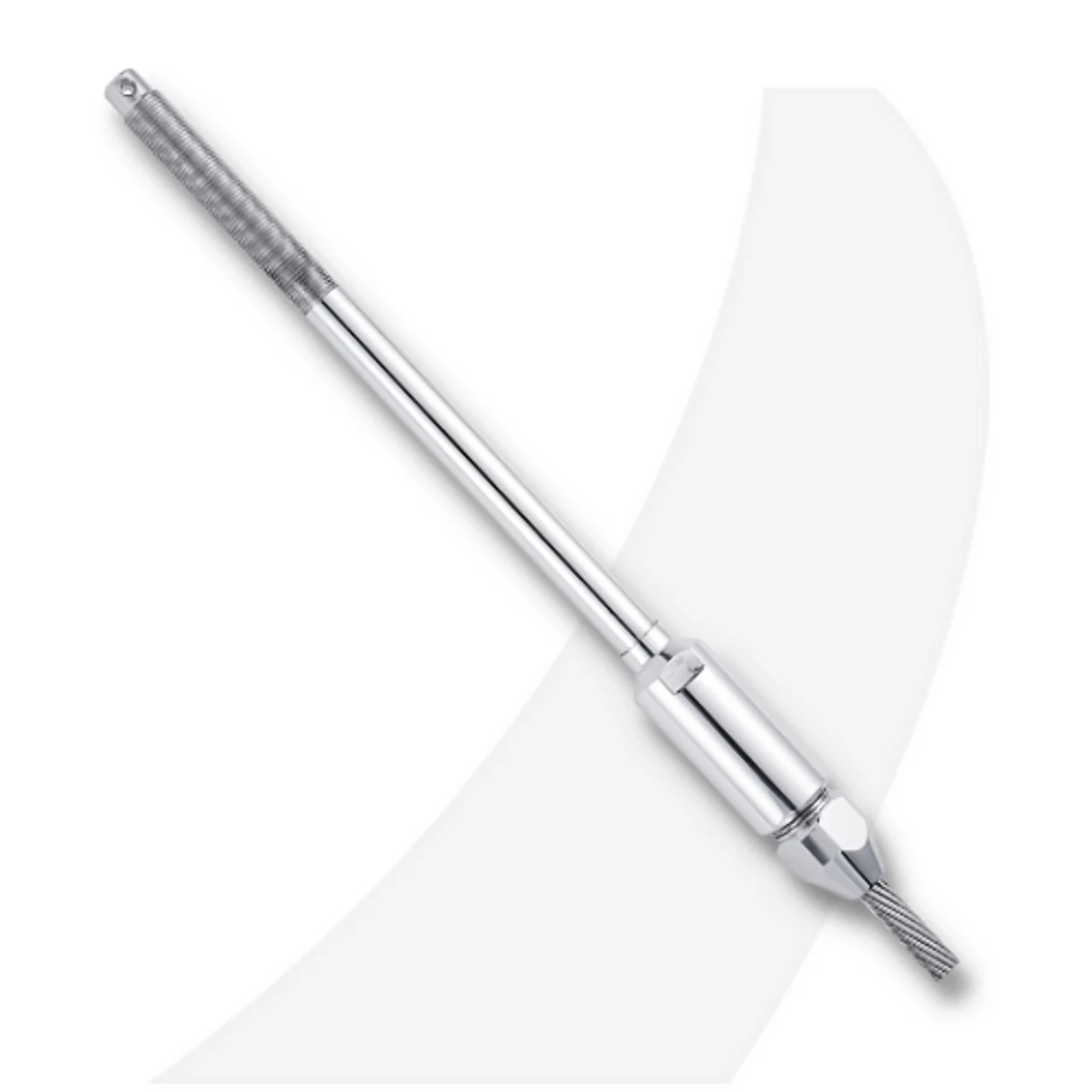

Sta-Lok Long Stud 5/8″ Wire x 1″ RH Thread
Technical Information
| Reference | Wire Size (MM) |
Wire Size (Inch) |
Thread (UNF) |
A (MM) |
A (Inch) |
B (MM) |
B (Inch) |
Weight (KG) |
Weight (LB) |
| 036-03 | 3 MM | 1/8″ | 1/4″ | 64.3 | 2.532 | 55.6 | 2.187 | 0.020 | 0.044 |
| 036-04-1/4 | 4 MM | 5/32″ | 1/4″ | 65 | 2.562 | 55.6 | 2.187 | 0.040 | 0.088 |
| 036-04 | 4 MM | 5/32″ | 5/16″ | 67.5 | 2.656 | 58.7 | 2.312 | 0.060 | 0.132 |
| 036-05-5/16 | 5 MM | – | 5/16″ | 70.6 | 2.78 | 58.7 | 2.312 | 0.080 | 0.176 |
| 036-05 | 5 MM | – | 3/8″ | 78 | 3.062 | 66.7 | 2.625 | 0.080 | 0.176 |
| 136-05-5/16 | – | 3/16″ | 5/16″ | 65 | 2.562 | 58.7 | 2.312 | 0.080 | 0.176 |
| 136-05 | – | 3/16″ | 3/8″ | 78 | 3.062 | 66.7 | 2.625 | 0.080 | 0.176 |
| 136-55 | – | 7/32″ | 3/8″ | 84 | 3.312 | 66.7 | 2.625 | 0.120 | 0.265 |
| 136-55-7/16 | – | 7/32″ | 7/16″ | 85 | 3.343 | 74.6 | 2.937 | 0.140 | 0.309 |
| 136-55-1/2 | – | 7/32″ | 1/2″ | 94 | 3.687 | 81.0 | 3.187 | 0.160 | 0.353 |
| 036-06-3/8 | 6MM | – | 3/8″ | 84 | 3.312 | 66.7 | 2.625 | 0.120 | 0.265 |
| 036-06 | 6MM | – | 7/16″ | 93 | 3.656 | 74.6 | 2.937 | 0.140 | 0.309 |
| 136-06-3/8 | – | 1/4″ | 3/8″ | 84 | 3.312 | 66.7 | 2.625 | 0.120 | 0.265 |
| 136-06 | – | 1/4″ | 7/16″ | 93 | 3.656 | 74.6 | 2.937 | 0.140 | 0.309 |
| 136-06-1/2 | – | 1/4″ | 1/2″ | 94 | 3.687 | 81.0 | 3.187 | 0.160 | 0.353 |
| 036-07-7/16 | 7MM | 9/32″ | 7/16″ | 95 | 3.75 | 74.6 | 2.937 | 0.180 | 0.397 |
| 036-07 | 7MM | 9/32″ | 1/2″ | 97 | 3.812 | 81.0 | 3.187 | 0.200 | 0.441 |
| 036-08 | 8MM | 5/16″ | 1/2″ | 98 | 3.875 | 81.0 | 3.187 | 0.240 | 0.529 |
| 036-08-5/8 | ` | 5/16″ | 5/8″ | 110 | 4.343 | 95.2 | 3.75 | 0.300 | 0.661 |
| 036-10 | 10MM | – | 5/8″ | 111 | 4.375 | 95.2 | 3.75 | 0.360 | 0.794 |
| 036-10-3/4 | 10MM | – | 3/4″ | 129 | 5.06 | 123.8 | 4.875 | 0.480 | 1.058 |
| 136-10 | – | 3/8″ | 5/8″ | 111 | 4.375 | 95.2 | 3.75 | 0.360 | 0.794 |
| 136-10-3/4 | – | 3/8″ | 3/4″ | 129 | 5.062 | 123.8 | 4.875 | 0.480 | 1.058 |
| 136-11 | – | 7/16″ | 3/4″ | 139 | 5.468 | 123.8 | 4.875 | 0.760 | 1.676 |
| 136-11-7/8 | – | 7/16″ | 7/8″ | 168 | 5.625 | 139.7 | 5.5 | 0.880 | 1.94 |
| 036-12 | 12MM | – | 3/4″ | 139 | 5.47 | 123.8 | 4.875 | 0.760 | 1.676 |
| 036-12-7/8 | 12MM | – | 7/8″ | 168 | 5.63 | 139.7 | 5.500 | 0.880 | 1.94 |
| 136-12 | – | 1/2″ | 3/4″ | 139 | 5.468 | 123.8 | 4.875 | 0.760 | 1.676 |
| 136-12-7/8 | – | 1/2″ | 7/8″ | 162 | 6.375 | 139.7 | 5.5 | 0.880 | 1.94 |
| 036-14 | 14MM | 9/16″ | 7/8″ | 170 | 6.69 | 139.7 | 5.500 | 1.300 | 2.866 |
| 036-14-100 | 14MM | 9/16″ | 1″ | 170 | 6.69 | 139.7 | 5.500 | 1.420 | 3.131 |
| 036-16 | 16MM | 5/8″ | 1″ | 171 | 6.75 | 139.7 | 5.500 | 1.660 | 3.66 |
| 036-19 | 19MM | 3/4″ | 11/8″ | 213.00 | 8.375 | 171.5 | 6.75 | 3.140 | 6.923 |
| 036-22 | 22MM | 7/8″ | 11/4″ | 275.00 | 10.812 | 227.0 | 8.937 | 4.540 | 10.009 |
| 036-26 | 26MM | 1″ | 13/8″ | 284.00 | 11.187 | 232.0 | 9.125 | 5.100 | 11.244 |
