Description

Specifications:

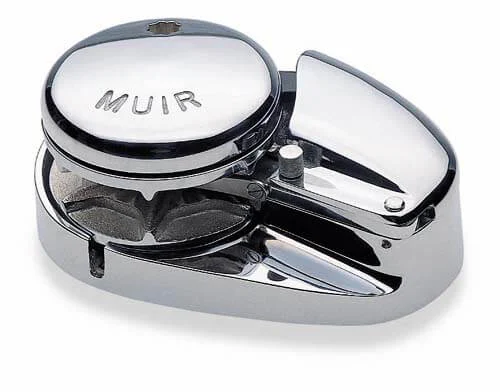

• Version Low-Profile
• Motor Wattage 1200W
• Finish Stainless Steel
• Standard Equipment:Footswitch,Clutch Handle,Rope Chain Management System
• Vessel Length 45-64 ft (14-20m)
• Standard Equipment RCMS, Footswitch, Handle
• Max Load 2500 lb (1136 kg)
• Work Load 624 lb (284 kg)
• Chain Sizes 5/16BBB or HT, 3/8BBB or HT, 1/2HT
• Amps Work Load 75
• Max Line Speed 44 ft/min (13.5 m/min)
• Rope Sizes 9/16, 5/8, 3/4 in.
• Manual Override System Optional
• Mirror Image Windlasses Available. Contact IMTRA for more information.
• Approximate Ship Weight (lbs) 88
