Description

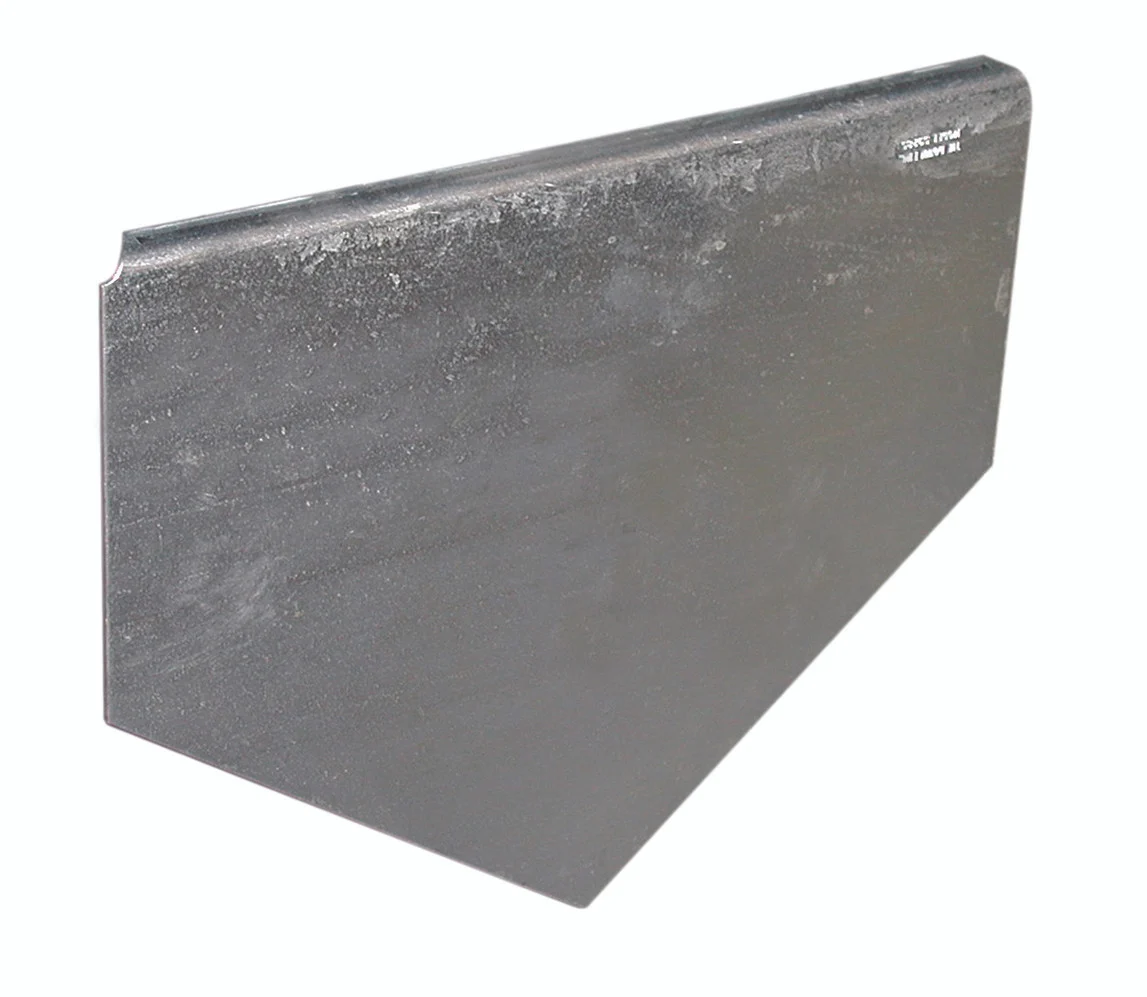

The Tie Down Engineering 59286 XL Stabilizer Plate is required in Florida for installation in Class 4 soils. The plate measures 17.5″ x 13.5″. Plate is constructed with a galvanized finish for long lasting protection. Anchor/Stabilizer Installation: (1) Position anchor at a slight back angle (10°) so that when fully installed, the anchor head will be inside any skirting or side wall; (2) Install anchor to +/- 2/3 depth, then install stabilizer vertically, within 3″ to 4″ of anchor shaft, parallel to wall of home; (3) Fully drive anchor, attach strap (see proper strap tensioning), and pretension strap to pull anchor rod against the stabilizer plate.
XL stabilizer plate for use with Earth Anchor Stabilizer #59292N
Required in Florida for installation in Class 4 soils
Plate Dimensions: 17.5″ x 13.5″
Galvanized finish
