Description

Power A EM12 – Electronic Control Package

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
• Plug’N Play connectivity
• Automatic engines synchronization
• Dock Assist
• Fully programmable shift delays

EM12 Package Includes:

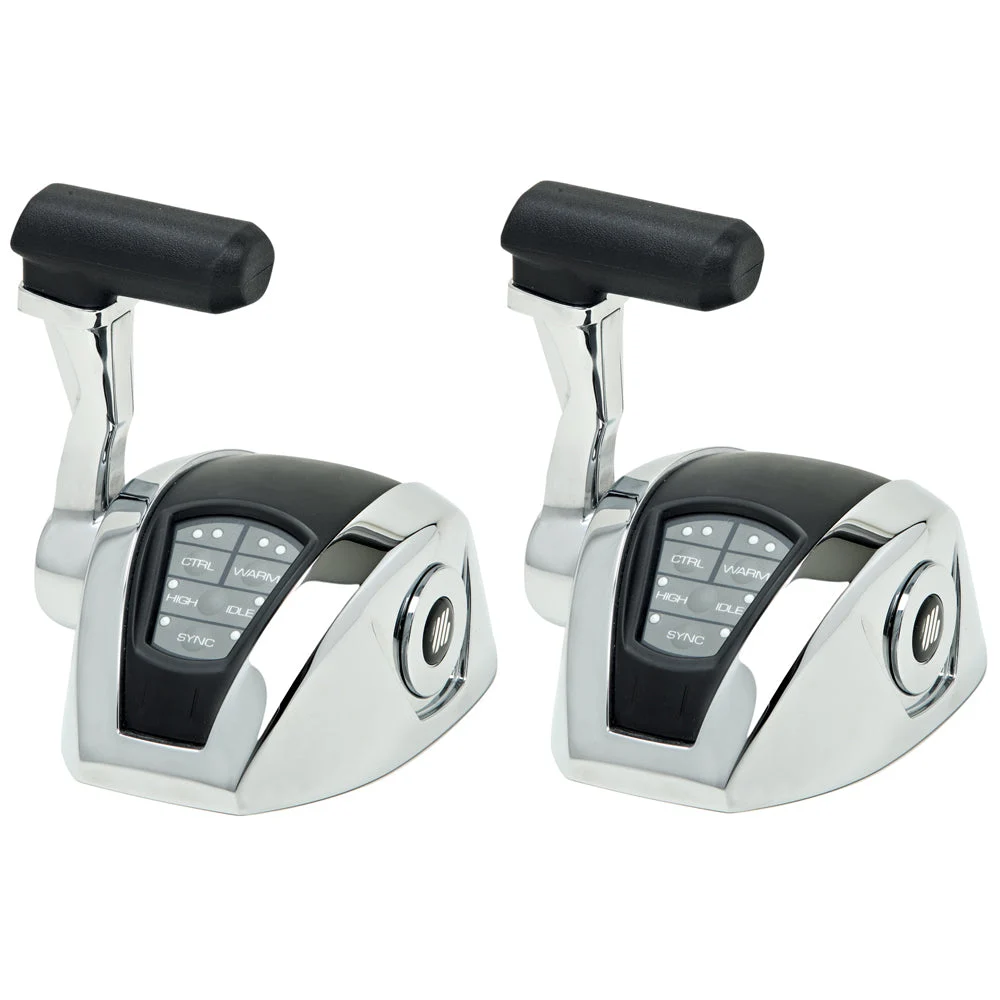

• 42009G – (2) PA2-B1 – Single Lever Control w/o Trim
• 42017F – (1) PA2-CU – Control Unit w/LED Diagnostc & Programming Screen
• 42018H – (1) PA2-VT – V-Throttle f/0-5V Interface
• 42027J – (1) PA2-MA – Electro Mechanical Actuatorf/Shift and/or Throttle
• 42028L – (1) PA2-NT – Network Terminator
• 42029N – (1) T-VT2 – Universal V-Throttle Cable 6.5′
• 42053K – (1) M-P3 – Main Power Supply Cable, 9.8′
• 71021K – (2) CAN-10 – Network Connection Cable 33′
• 73639T – (2) CAN-1 – Network Connection Cable 3′

“Power A Mark II 42012V Electronic Dual Control With Trim The easy to install PowerA Mark II control system provides fingertip operation of throttle and shift levers. Using reliable and precise digital data transmission, this single or dual function control system is specifically esigned to work on mechanically as well as electronic and electro-hydraulic gas and diesel inboards, terndrives and outboards.”
SKU: NVN-46013
MPN: EM12
UPC:
