Description

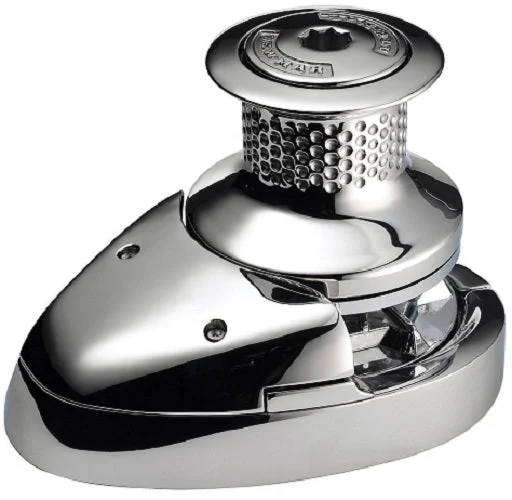

FastFit™ motor gearbox attachement enable the windlass to be fitted by one man alone. While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly align the deck unit and motorgearbox for a perfect fit first time. FastFit™ enable the motor / gearbox to be rotated and fixed in increments of 45°. To install your windlass, simply fix the deck unit to the deck and then slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut.

Features:

• Rope-chain gypsy
• Manual chain release (Free Fall)
• Cone clutch for smooth, easy control
• Optional manual override motor gearbox
• Fall safe anchor lock
• Robust/reliable worm gearbox
• FastFit™ option for quicker installation and less hassle
• For boats up to 14m (48ft)
