Description

Features:

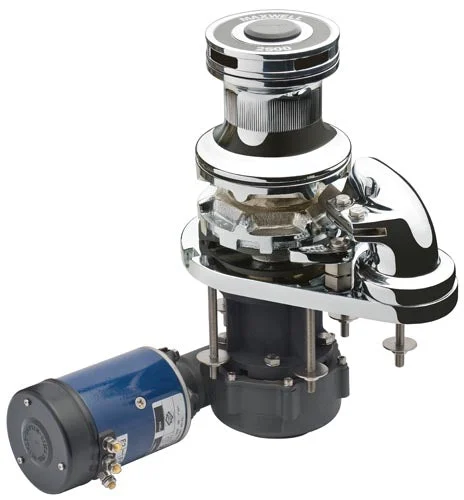

• Fully automatic single or dual direction chain wheel operation.
• High-quality finish on above deck components, manufactured from marine grade 316 stainless steel and chromed bronze, for long term durability.
• Integral chain pipe and stripper are aligned for virtually jam-free operation providing automatic feed of chain into and out of the anchor locker.
• Port and starboard chain pipes for twin installations (Sizes 2500 and above only).
• Cone-type brake/clutch mechanism permits manual free fall anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe and precise operator control.
• Chainwheel locking pawl.
• Clutch disengagement of the chainwheel enables independent rope hauling from any direction, using the Max-grip™ snag-free warping drum for positive control of all ropes.
• Simple through deck installation by modular design and precise alignment of gearbox to the topworks utilising marine-grade stainless steel bolts.
• Anodized aluminium gearbox and spacer tube on all models.
• Heavy duty, dual direction motor, designed for marine winches.
• Low Profile configurations (no warping drum) are available.
