Description

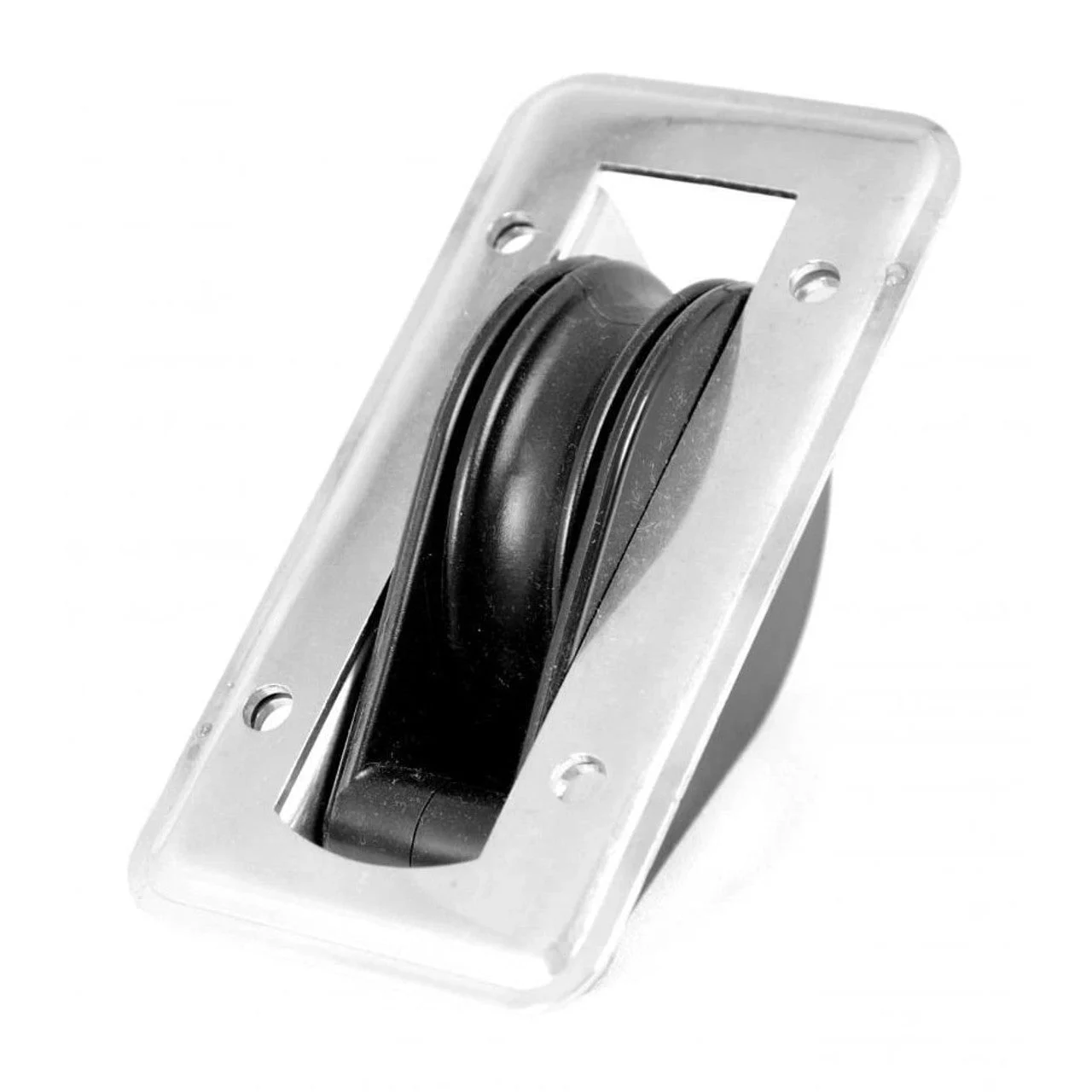

Single Through Deck

Conventional ball bearing design with long lasting characteristics. optional with aluminum sheave on roller bearings for higher load.

Technical Description Features Metric American Working Load 550 lb 249.47 kg Breaking Load 2000 lb 907.18 kg CC Holes 1.46 in 37 mm Length 4.49 in 114 mm Width 2.24 in 57 mm Sheave Diameter 2.24 in 57 mm Max Rope 0.5 in 12.7 mm Weight 0.40 lb 181 g
