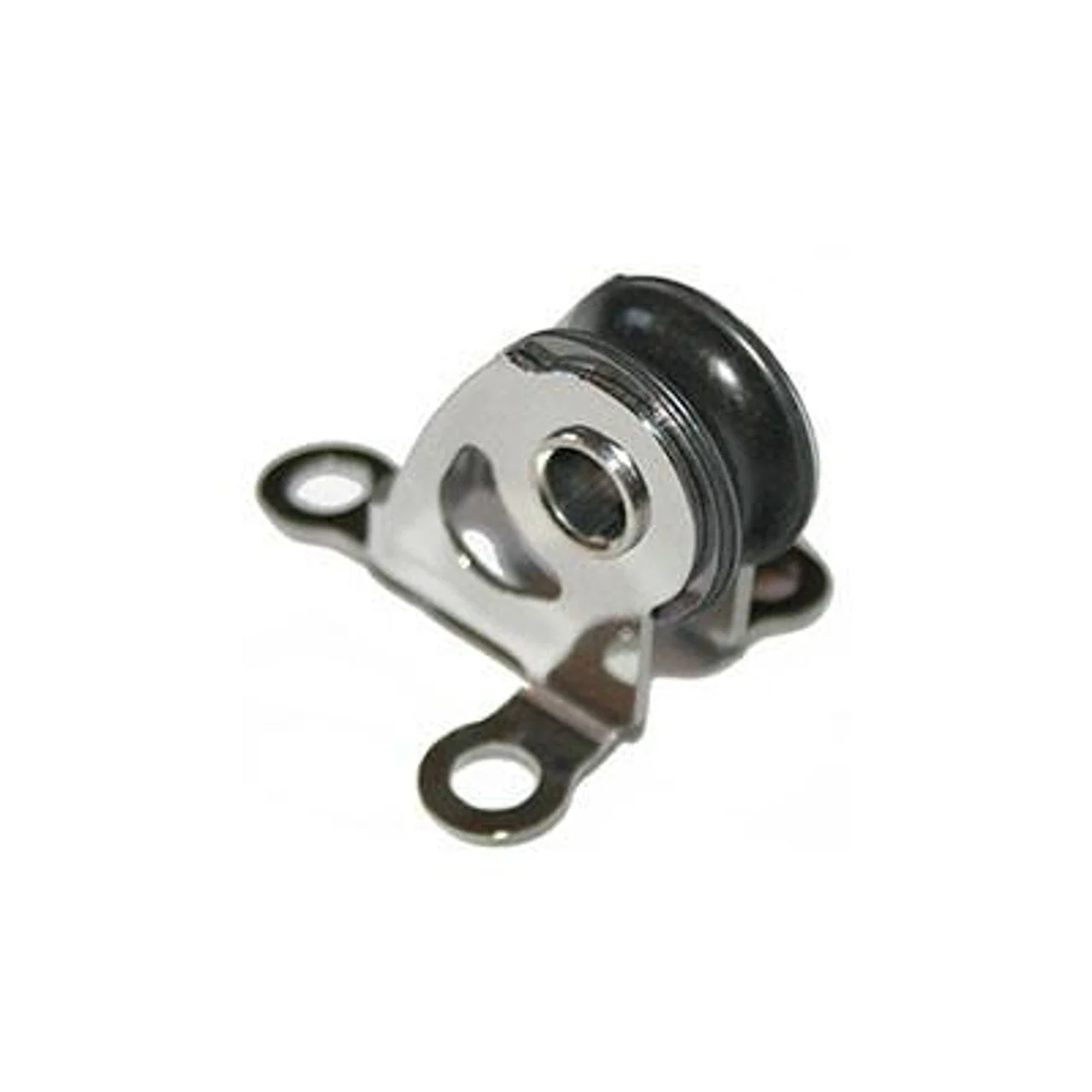

Micro Block – Single Vertical Lead With Aluminum Sheave

Real performance even in the small blocks has always been a Nautos principle.This series of blocks is evidence of this.

Rollers over a hard axle handle a greater load than ball Bearings.

Delrin Rollers

Stainless Steel 316

Technical Description Features Metric American Working load 330 lb 149.6 kg Breaking load 900 lb 408.2 kg Max Line Diameter 0.24 in 6 mm Sheave Diameter ( Sup) 0.79 in 20 mm Height 1.10 in 28 mm Length 1.42 in 36 mm Width 0.57 in 40 mm Cc Holes 1.10 in 28 mm Weight 0.07 lb 32 g
