Description

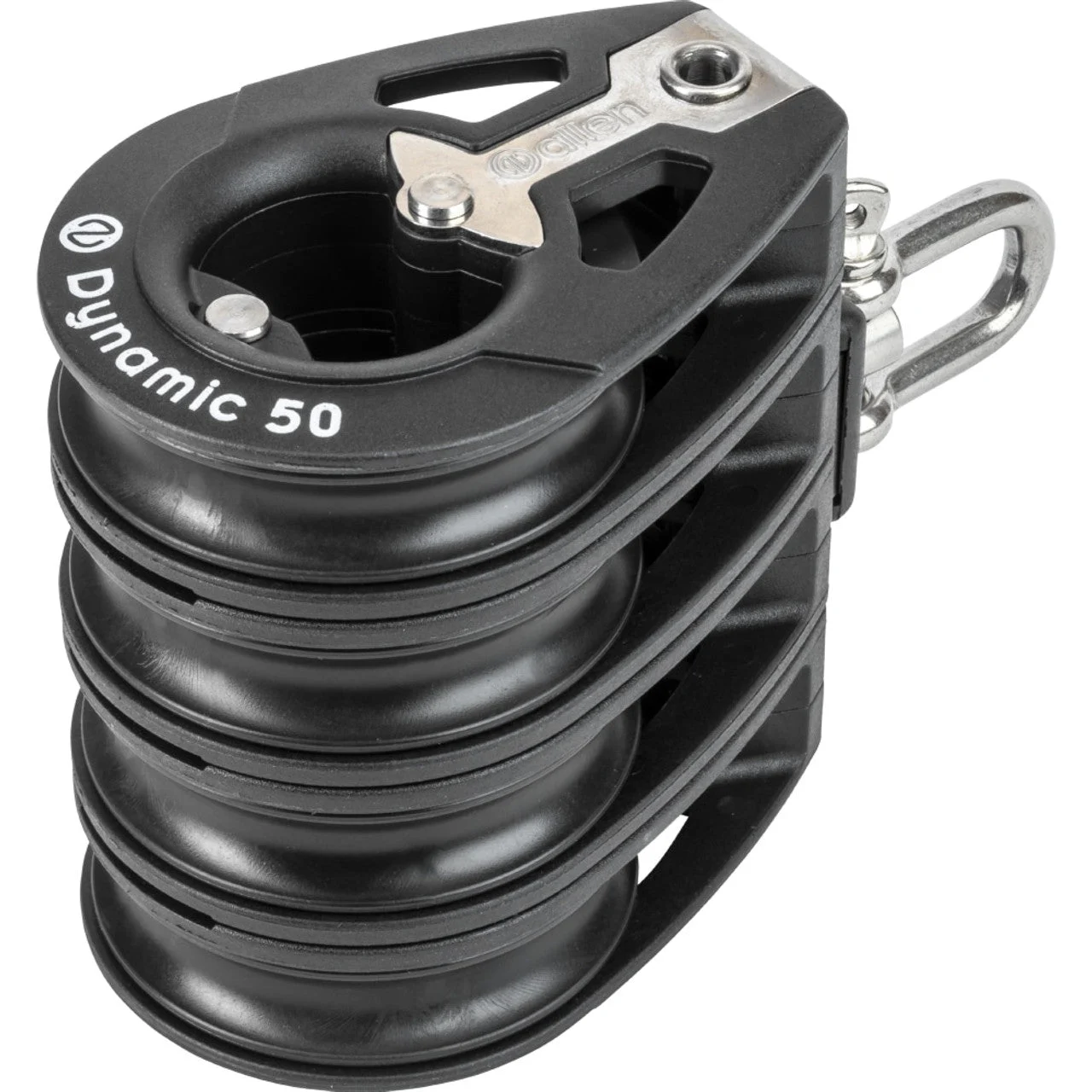

50mm Quad Dynamic Block.

The A2056 is a high performing ball bearing block, designed to eliminate friction and allow rope to run at great speeds.

Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between. The 50mm quad is a great choice for systems which require a larger purchase system with minimal friction.

Bearings ?? Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.

Swivel Lock ?? The A2056 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.

Becket ?? A large central hole not only reduces the overall weight of the block but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.

Technical DescriptionFeaturesMetricAmericanBreaking Load2094.39 lb950 kgmaximum Line Diameter0.39 in10 mmMaximum Working Load1036.17 lb470 kgShakle Pin0.20 in5 mmLength4.27 in108.35 mmWeight0.59 lb269 g
