Description

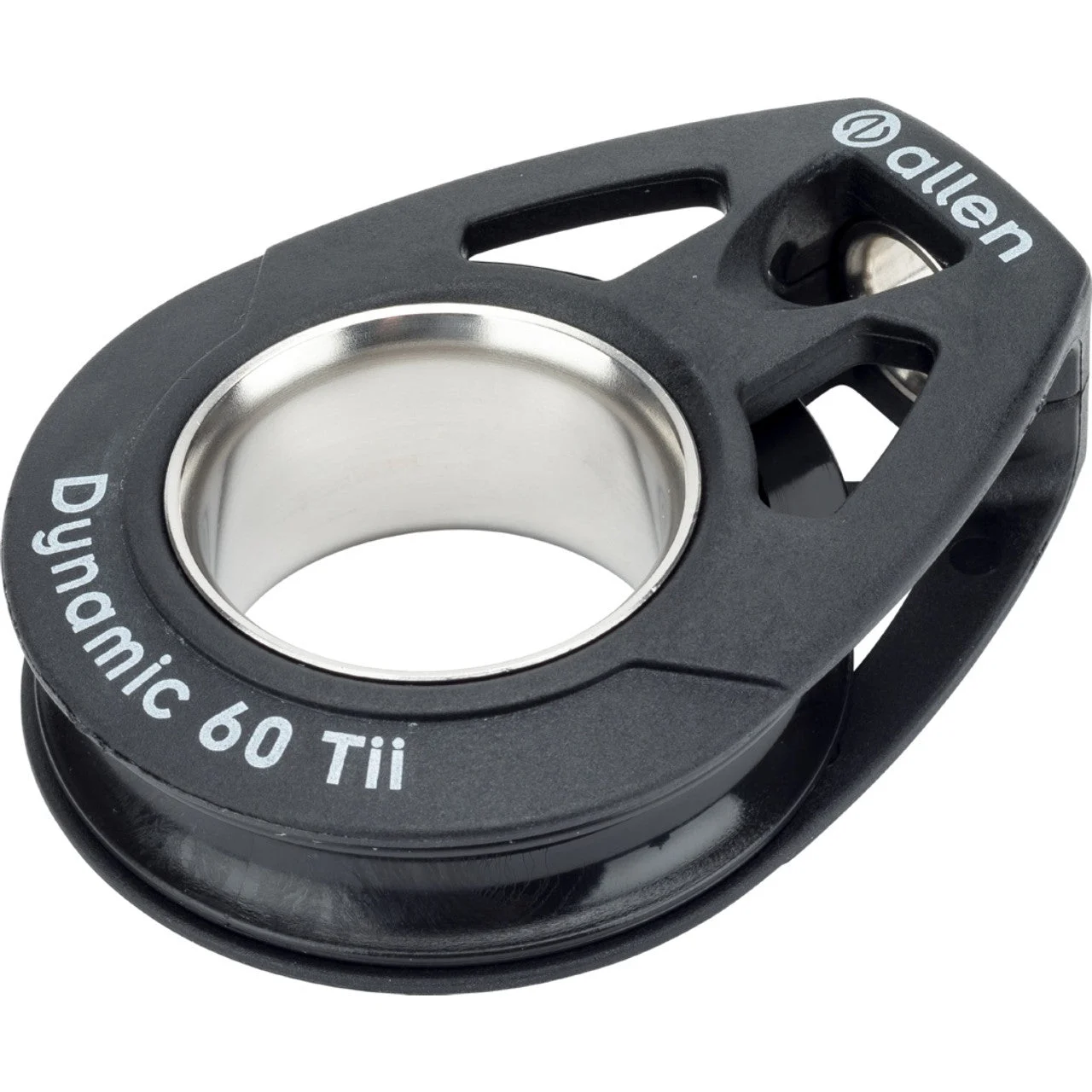

60mm Single Tii-On Block.

Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.

Available with or without a soft shackle.

Becket ? The large central rivet not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.

Bearings ? Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.

Fitting Instructions ? Tii-On blocks rely on the correct attachment method to give them maximum strength.

When attaching a Tii-on block you must feed the rope around the central axle and through the head of the block.

When possible, Tii-on blocks should be attached with a crossed/ through threaded line. (see pictures for example).This is very important, as it keeps the line load pulling the side cheeks together.

When using a Tii-Shackle, when possible cross the lines. Only use a non-crossed Tii-Shackle on low-load applications. See the picture above of the block attached to a lacing eye for example on how to cross the Tii-Shackle.

Technical Description Features Metric American Breaking Load 3086.47 lb 1400 kg Maximum Line Diameter 0.39 in 10 mm Maximum Working Load 1543.24 lb 700 kg Length 3.31 in 84 mm Weight 0.20 lb 91 g
